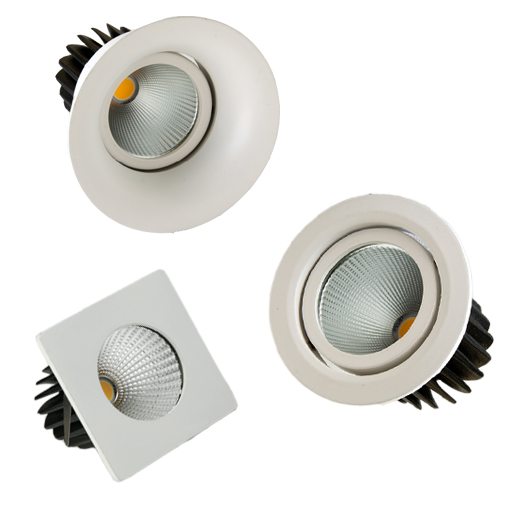

COB Series Recessed
Features:
High performance,high quality with COB LED chips
High lighting performance and reliability
Patented lens design provides excellent usable light with anti-glare
| Description | Specification |
|---|---|
| Modal Name | SF-1304SM (4 W) |
| Dimension | 2.44”x2.44” |
| Cut Out | Dia-2.17” |
| Depth | 1.5" |
| Beam Angle | 76° |
| Color | WH / WW / NW |
| Description | Specification |
|---|---|
| Modal Name | SF-1304RM (4 W) |
| Dimension | Dia-2.76” |
| Cut Out | Dia-2.17” |
| Depth | 1.5" |
| Beam Angle | 76° |
| Color | WH / WW / NW |
| Description | Specification |
|---|---|
| Modal Name | SF-1305RF-B (5 W), SF-1310RF-B (10 W) |
| Dimension | Dia-3.54” |
| Cut Out | Dia-2.95” |
| Depth | 2.56” |
| Beam Angle | 70° |
| Color | WH / WW / NW |
| Description | Specification |
|---|---|
| Modal Name | SF-1306SM (6 W) |
| Dimension | 3.43”x3.43” |
| Cut Out | Dia-2.95” |
| Depth | 1.77” |
| Beam Angle | 78° |
| Color | WH / WW / NW |
| Description | Specification |
|---|---|
| Modal Name | SF-1306RM (6 W) |
| Dimension | Dia-3.43” |
| Cut Out | Dia-2.95” |
| Depth | 1.77” |
| Beam Angle | 78° |
| Color | WH / WW / NW |
| Description | Specification |
|---|---|
| Modal Name | SF-1315RF (15 W) |
| Dimension | Dia-4.72” |
| Cut Out | Dia-3.94” |
| Depth | 3.66” |
| Beam Angle | 114° |
| Color | WH / WW / NW |
| Description | Specification |
|---|---|
| Modal Name | SF-1305 (5 W), SF-1310 (10 W) |
| Dimension | MR16 Type |
| Depth | 2.36” |
| Beam Angle | 65° |
| Color | WH / WW / NW |
| Description | Specification |
|---|---|
| Modal Name | SF-1305SF (5 W), SF-1310SF (10 W) |
| Dimension | 2.56”X2.56” |
| Cut Out | Dia-1.77” |
| Depth | 2.48” |
| Beam Angle | 65° |
| Color | WH / WW / NW |
| Description | Specification |
|---|---|
| Modal Name | SF-1325RF (25 W) |
| Dimension | Dia-5.71” |
| Cut Out | Dia-4.72” |
| Depth | 2.95” |
| Beam Angle | 88° |
| Description | Specification |
|---|---|
| Modal Name | SF-1305RF (5 W), SF-1310RF (10 W) |
| Dimension | Dia-2.64” |
| Cut Out | Dia-1.77” |
| Depth | 2.48” |
| Beam Angle | 65° |
| Color | WH / WW / NW |
| Description | Specification |
|---|---|
| Modal Name | SF-1305RF-A (5 W), SF-1310RF-A (10 W) |
| Dimension | Dia-3.94” |
| Cut Out | Dia-3.15” |
| Depth | 3.27” |
| Beam Angle | 65° |
| Color | WH / WW / NW |
| Description | Specification |
|---|---|
| Modal Name | SF-1305RM (5 W), SF-1310RM (10 W) |
| Dimension | Dia-2.87” |
| Cut Out | Dia-2.36” |
| Depth | 2.48” |
| Beam Angle | 65° |
| Color | WH / WW / NW |
| Description | Specification |
|---|---|
| Modal Name | SF-1325RF-A (25 W) |
| Dimension | Dia-5.71” |
| Cut Out | Dia-4.72” |
| Depth | 2.75” |
| Beam Angle | 88° |
| Color | WH / WW / NW |
| Description | Specification |
|---|---|
| Modal Name | SF-1325RM (25 W) |
| Dimension | Dia-5.71” |
| Cut Out | Dia-4.72” |
| Depth | 3.15” |
| Beam Angle | 88° |
| Color | WH / WW / NW |
| Description | Specification |
|---|---|
| Modal Name | SF-1305SM-B (5 W), SF-1310SM-B (10 W) |
| Dimension | 4.02”0X4.02” |
| Cut Out | 3.35”X3.35” |
| Depth | 4.05” |
| Beam Angle | 65° |
| Color | WH / WW / NW |
| Description | Specification |
|---|---|
| Modal Name | SF-1315RM (5 W) |
| Dimension | Dia-5.47” |
| Cut Out | Dia-4.72” |
| Depth | 4.14” |
| Beam Angle | 82° |
| Color | WH / WW / NW |
| Description | Specification |
|---|---|
| Modal Name | SF-1305SM (5 W), SF-1310SM (10 W) |
| Dimension | 2.87”X2.87” |
| Cut Out | Dia-2.36” |
| Depth | 2.48” |
| Beam Angle | 76° |
| Color | WH / WW / NW |
| Description | Specification |
|---|---|
| Modal Name | SF-1305RM-A (5 W), SF-1310RM-A (10 W) |
| Dimension | Dia-3.54” |
| Cut Out | Dia-3.07” |
| Depth | 3.23” |
| Beam Angle | 76° |
| Color | WH / WW / NW |
| Description | Specification |
|---|---|
| Modal Name | SF-1305SM-A (5 W), SF-1310SM-A (10 SM) |
| Dimension | 3.54”x3.54” |
| Cut Out | Dia-3.07” |
| Depth | 3.23” |
| Beam Angle | 76° |
| Color | WH / WW / NW |
| Description | Specification |
|---|---|
| Modal Name | SF-1305RM-B (5 W), SF-1310RM-B (10 W) |
| Dimension | Dia-4.02” |
| Cut Out | Dia-3.54” |
| Depth | 4.05” |
| Beam Angle | 76° |
| Color | WH / WW / NW |
| Description | Specification |
|---|---|
| Modal Name | SF-1425 (25 W) |
| Dimension | Dia-5.91” |
| Depth | 4.72 |
| Beam Angle | 88° |
| Color | WH / WW / NW |
| Description | Specification |
|---|---|
| Modal Name | SF-1405 (5 W), SF-1410 (10 W) |
| Dimension | Dia-2.91” |
| Depth | 4.25” |
| Beam Angle | 76° |
| Color | WH / WW / NW |
